🧠 Action Classification using Oneat

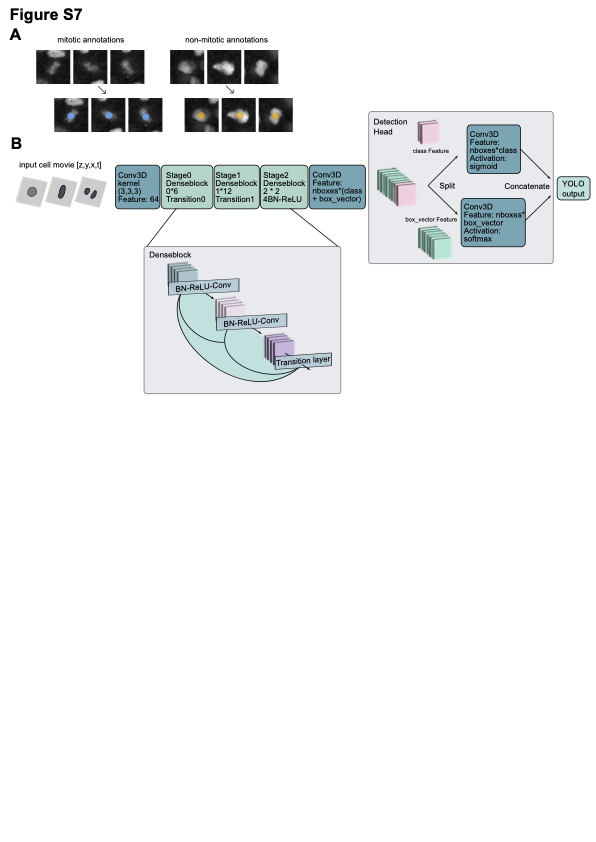

🚀 Architecture Overview

Oneat’s core network, DenseVollNet, processes short 4D image crops by treating time frames as input channels and applying only spatial convolutions (Z, Y, X):

• Input:
  Patches of size (Z, Y, X) with T timepoints folded as C = T channels (shape (Z, Y, X, T)).

• DenseVollNet Backbone:

  1. Initial 3D Conv

     • Conv3D with startfilter filters, kernel (k_z, k_y, k_x) (e.g. 7×7×7), padding='same'

     • BatchNorm → ReLU

  2. Three Dense Block Stages

     • Each stage i has depth_i layers:

       • Bottleneck: Conv3D(1×1×1), reducing channels (4·F)

       • Feature: Conv3D(mid_kernel, mid_kernel, mid_kernel), growth rate F

       • Concat the new features with previous tensor

     • Transition layers between stages (except after the last):

       • Conv3D(1×1×1) to compress channels (reduction factor)

       • MaxPool3D(2×2×2) to downsample spatial dims

         • Downsampling factor per pool: 2

         • Total downsampling factor: 4 (after two pools), e.g. (8,64,64) → (2,16,16)

  3. BN → ReLU after final dense block

• Fully-Convolutional Head:

  • A single large Conv3D (kernel mid_kernel³, padding=’valid’) replaces FC layers, outputting categories + nboxes·box_vector channels.

    • Kernel size = (Z/4, Y/4, X/4) = (2,16,16) for input (8,64,64) and last_conv_factor=4.

    • This collapses the spatial map to 1×1×1 per channel.

  • Split these channels into:

    • Classification map (categories channels) → Softmax

    • Regression map (nboxes·box_vector channels) → Sigmoid

  • Concat classification & regression outputs.

This design lets Oneat scan any (Z, Y, X) volume with T frames in one pass, yielding per-voxel mitosis predictions.

---

⚙️ Oneat Mitosis Detector

• Input crops: 64×64×8 voxels over T timepoints (folded into channels).

• Training samples:

  • Positive: Napari-clicked mitotic events

  • Negative: Random non-dividing crops

• Loss: Binary cross-entropy

After training, Oneat predicts mitosis coordinates (t, z, y, x) in whole 4D stacks, which the TrackMate-Oneat plugin uses to:

1. Insert trajectory branches at predicted mitoses

2. Link daughter cells within a 16.5 µm radius (Jaqaman linker)

3. Optionally apply MARI to enforce perpendicular daughter positioning, reducing false positives

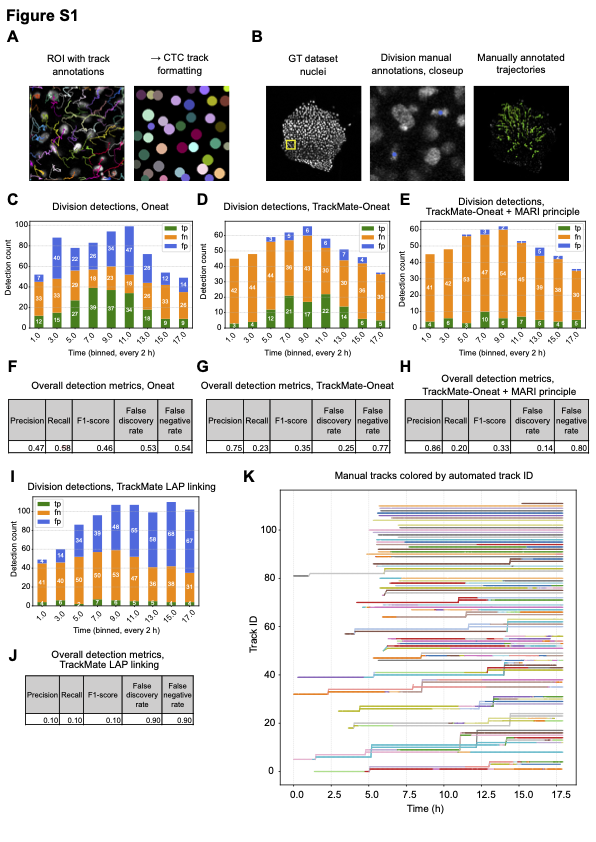

Performance:
Integrating Oneat boosts the precision from 0.1 to 0.86 (with MARI) vs. native TrackMate, with a false discovery rate of 0.14 compared to 0.9 of native TrackMate. TrackMate-Oneat extension uses the same track linking algorithm as TrackMate but with a biologically prior information of the locations of mitotic mother cells and it is only desinged to boost the track linking/Branch Correctness index, the mother cells for which both the daughter cells can not be linked are corrected at a later stage to be classified as a mitotic trajectory.
